50Ω Reverse Polarity SSMA Female Mini SMA Jack Straight Right Angle RF Coaxial CXN3506 Flexible Cable Connector 18GHz
|
পণ্যের বিবরণ:
প্রদান:
|
বিস্তারিত পণ্যের বর্ণনা
| পণ্যের নাম: | বিপরীত মেরুতা এসএসএমএ মহিলা কেবল সংযোগকারী | মডেল: | আরপিএসএসএমএ-কে 506 জি |
|---|---|---|---|
| ফ্রিকোয়েন্সি রেঞ্জ: | 0.3MHz-18GHz | প্রতিবন্ধকতা: | 50Ω |
| DWV: | 750V | নিরোধক প্রতিরোধ: | ≥5000MΩ |
| কেন্দ্র কন্ডাক্টর: | তামা খাদ, সোনার ধাতুপট্টাবৃত | বাইরের কন্ডাক্টর: | স্টেইনলেস স্টিল, প্যাসিভেশন |
| সঙ্গমের কেবল: | CXN3506 কেবল | অন্তরক: | Ptfe |
| নমুনা: | স্টক | ||
| বিশেষভাবে তুলে ধরা: | 50Ω SSMA female RF connector,reverse polarity SMA jack connector,18GHz flexible coaxial cable connector |
||

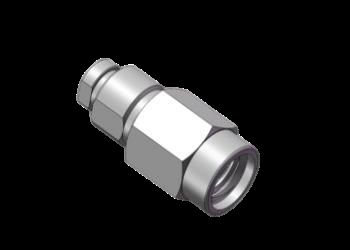

50Ω Reverse Polarity SSMA Female Mini SMA Jack Straight Right Angle RF Coaxial CXN3506 Flexible Cable Connector 18GHz
High-Frequency Performance up to 18GHz
The SSMA Series RF coaxial connector is a miniaturized version of the SMA connector, designed to be 30% smaller while maintaining excellent performance characteristics. Featuring a threaded interface (10-36UNF-2) and 50Ω characteristic impedance, these connectors support frequencies up to 30GHz.
Key Features:
- Compact design - 30% smaller than standard SMA connectors
- Wide frequency band operation up to 30GHz
- High reliability for demanding applications
- Available in multiple configurations: straight, right angle, bulkhead, and flange mount options
- Stainless steel screw sleeve/barrel for durability
Interface of SSMA RF Coaxial Connectors
Reverse Polarity Straight SSMA Female RF Coaxial CXN3506 Flexible Cable Connector Dimenstion:
Model No.: RPSSMA-K506G
Reverse Polarity RA SSMA Female RF Coaxial CXN3506 Flexible Cable Connector Dimenstion:
Model No.: RPSSMA-K506G
Note: Please check our catalog for more similar models according to your application.
Applications
Xi'an Elite Electronic specializes in systematic interconnection solutions for demanding industries including:
- Aerospace and aviation systems
- Navigation and radar equipment
- Communication systems
- Measurement instruments
- Electronics applications
Packaging and Shipping
Each SSMA RF Coaxial Connector is carefully packaged to ensure protection during transportation:
We use reliable courier services for prompt delivery, providing customers with tracking information upon shipment.
For additional similar product models information, please check our catalog or contact our sales team at:
sales3@xa-elite.com.cn
sales3@xa-elite.com.cn
