Product name: | SMP RF Coaxial Conector | Plating: | Gold Plating |
---|---|---|---|
Impedance: | 50Ω | Certificate: | CE ROHS |
Gender: | Female | Body Style: | Straight |
Life Time: | 500Cycles | Mount method: | Flange Mount |

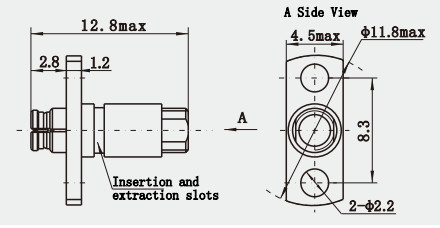

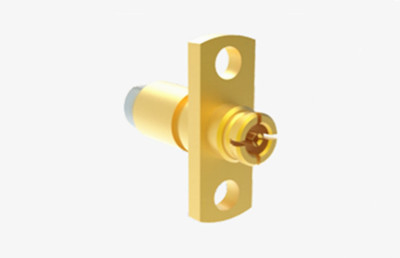

SMP Flange Mount Female Straight RF Connector for CXN3506/MF108A Cable
SMP is a miniature push-on RF coaxial connector that features a small volume, lightweight design, outstanding seismic performance, and a wide operating bandwidth. It is capable of handling operating frequencies up to 30GHz (our high-performance SMP connectors can achieve 40GHz). The plug offers three interface options: full detent, limited detent, and an unthreaded hole (including with braking). These various interface forms can accommodate the necessary axial or radial movement required for blind mating in broad-to-broad connector couplings. SMP connectors are suitable for installation scenarios that demand high reliability and modular density.
Features for SMP Connector:
1. Compact Size: SMP connectors are designed to be extremely compact, making them ideal for applications where space is at a premium.
2. Lightweight: Due to their miniaturized design, SMP connectors are lighter compared to other types of RF connectors.
3. Excellent Shock Resistance: The mechanical design of SMP connectors enables them to withstand vibrations and impacts, making them suitable for high-shock environments.
4. Broad Operating Bandwidth: SMP connectors support a wide frequency range, with standard operation up to 30GHz, and some products extending up to 40GHz.
5. Versatile Interface Options: SMP plugs offer three different interface configurations—full detent, limited detent, and smooth bore (including with brakes)—to accommodate various connection needs.
Electrical Characteristics | ||
Impedance | 50Ω | |
Frequency Range | DC~40GHz | |
Rated Voltage | 170VRMS* | |
Dielectrics Voltage-resistance | 500VRMS* | |
Insulation Resistance | ≥2000MΩ | |
Center Resistance | Outer conductor | Normal≤2.5mΩ, Sealing≤4mΩ |
Center conductor | Normal≤6mΩ, Sealing≤26mΩ | |
VSWR | ≤1.3 | |
Material & Mechanical Characteristics | ||
Center Conductor | Male | Sn-P Bronze,gold plated |
Female | Beryllium bronze, gold plated | |
Elastic Contact | Beryllium bronze | Gold plated |
Shell and other Metal Parts | Brass Stainless steel | Gold plated Passivation |
Insulators | Glass sintering/PTFE/PEI | |
Hermetic Product Leakage Rate | 1.01325×10-3Pa·cm3/s |
Applications
1. Wireless Communication: SMP connectors are frequently used in the RF sections of mobile communication base stations, including wireless local area networks (WLANs), cellular networks, and other RF transmission systems.
2. Test Equipment: In the test and measurement industry, SMP connectors are used in test fixtures, network analyzers, spectrum analyzers, and other precision measurement equipment because they can provide a stable signal path.
3. Satellite Communication: SMP connectors are suitable for satellite communication equipment, including the RF components of ground stations and satellite links, as they help ensure signal integrity.
